Introduction: Powering the Modern World
Look around you. You will see phones, laptops, and cordless tools. You will also see more cars plugging into the grid. What do they all have in common? They all rely on lithium-ion batteries. These power sources changed how we live. But how exactly are they made?
The manufacturing process of a lithium-ion battery is amazing. It combines advanced chemistry, heavy machinery, and extreme precision. Factories must be cleaner than hospital operating rooms. A single speck of dust can ruin a battery.
In this complete guide, we will walk through every step of battery production. We will look at raw materials. We will explore how factories build cells. Finally, we will see how these cells form a complete power system.
Understanding the Basics: What is Inside a Battery?

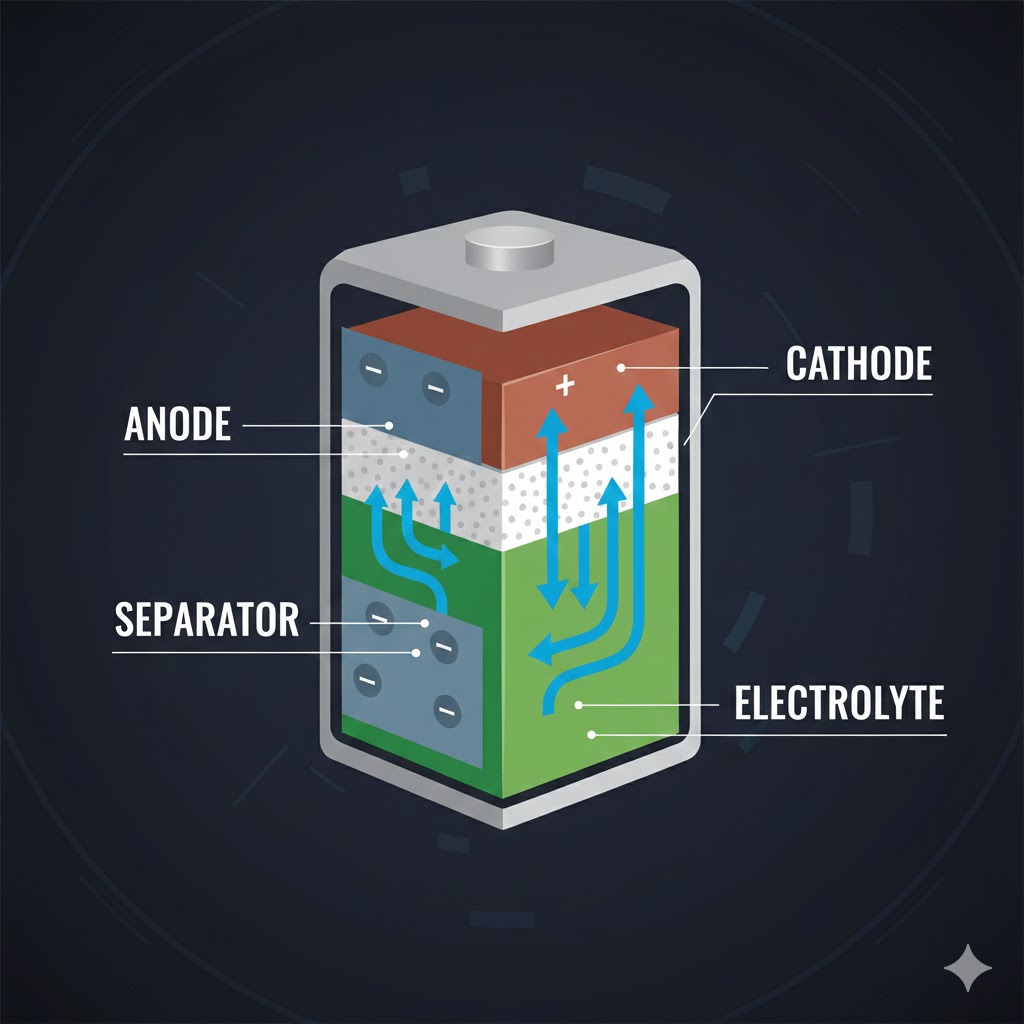

Before we build a battery, we must know its parts. Every lithium-ion cell has four main components. These parts work together to store and release energy.
1. The Anode and Cathode
A battery has two sides. These are the anode and cathode. The anode is the negative side. Factory workers usually make it from graphite. Graphite holds lithium ions well when the battery is full.
The cathode is the positive side. This part determines the battery’s capacity and voltage. Manufacturers use different metal oxides to make the cathode. We will discuss these specific materials later.
2. The Separator
The separator is a very thin sheet of plastic. It sits right between the anode and the cathode. It has a crucial job. It stops the two sides from touching. If they touch, it causes short circuiting. A short circuit can make the battery catch fire. However, the separator has tiny holes. These holes let lithium ions pass through safely.
3. The Electrolyte
The electrolyte is a special liquid or gel. It fills the empty spaces inside the cell. It contains special chemicals called lithium salts. This liquid acts like a highway. It allows the lithium ions to travel back and forth between the anode and cathode during charging and discharging.
Choosing the Right Materials for Lithium Ion Batteries
Not all batteries are the same. The secret lies in the chemicals we use. Engineers spend years testing new materials for lithium ion batteries. They want to make batteries safer, cheaper, and more powerful.
The most important choice is the electrode material. Specifically, the materials used for the cathode. Let us look at the two most popular choices today.

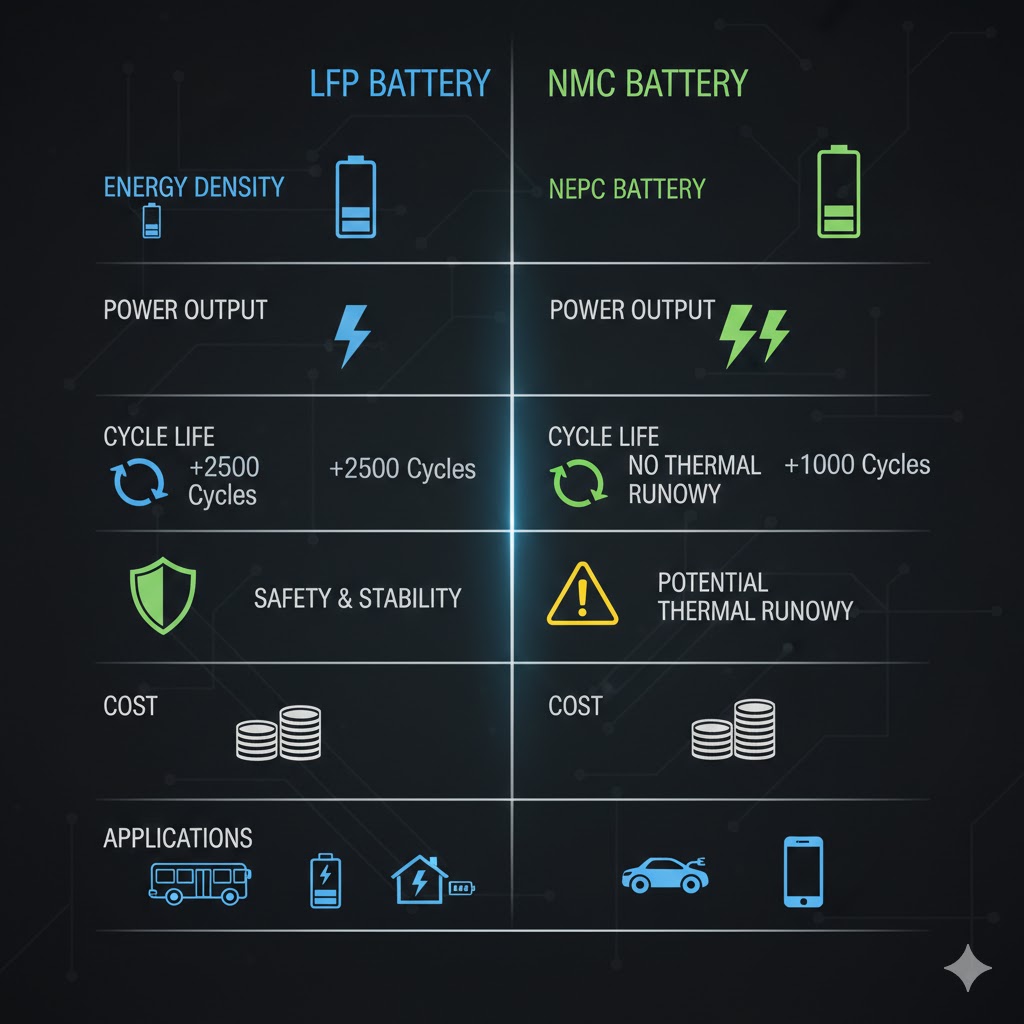

Lithium Iron Phosphate (LFP)
Lithium iron phosphate is very popular right now. It is incredibly safe. It does not overheat easily. It also lasts a very long time. You can charge and discharge it thousands of times. Because it is so stable, it is perfect for storing renewable energy from solar panels. Many home battery backups use LFP technology.
Lithium Nickel Manganese Cobalt Oxide (NMC)
Lithium nickel manganese Cobalt oxide is another major chemistry. We usually call it NMC. This material packs a lot of power into a small space. It has very high energy density. Because it is light and powerful, car makers love it. You will find NMC batteries inside most modern electric vehicles.
Both cathode materials use a base of active powder. This powder is the true heart of the battery.
Phase 1: Electrode Manufacturing
Now, let us step onto the factory floor. The first major phase is electrode manufacturing. This process is like baking a very precise, high-tech cake. Factory workers must mix the ingredients perfectly.
Step 1: Mixing the Slurry
Workers start with huge metal vats. They pour in the active material powder. For the cathode, this might be LFP or NMC powder. For the anode, it is graphite.
Next, they add binders and conductive fluids. They mix everything until it becomes a thick liquid. We call this liquid a “slurry.” It looks like dark, thick paint. The mixing must be perfect. Any lumps will ruin the battery.
Step 2: Coating the Foils
The factory uses huge rolls of metal foil. They use copper foil for the anode. They use aluminum foil for the cathode. A massive machine unrolls the foil.
The machine spreads the slurry onto the foil. It must spread the slurry evenly. The thickness must be perfect down to the micrometer. If the coating is uneven, the battery performance will drop heavily.
Step 3: Drying and Pressing (Calendering)
The coated foil is wet. It runs through a very long oven. The oven dries the slurry onto the metal foil.
Once dry, the foil goes through heavy steel rollers. This step is called calendering. The rollers press the material down tight. Pressing it makes the layer dense. A dense layer helps the battery hold more power.
Step 4: Slitting
The coated foil is too wide. A cutting machine slices the wide roll into narrow strips. These narrow strips are now ready to become individual battery cells.
Phase 2: Cell Assembly
The next phase is cell assembly. We have our finished electrodes. Now we must put them together. The factory environment here must be totally dry. Any moisture in the air will react badly with the battery chemicals.

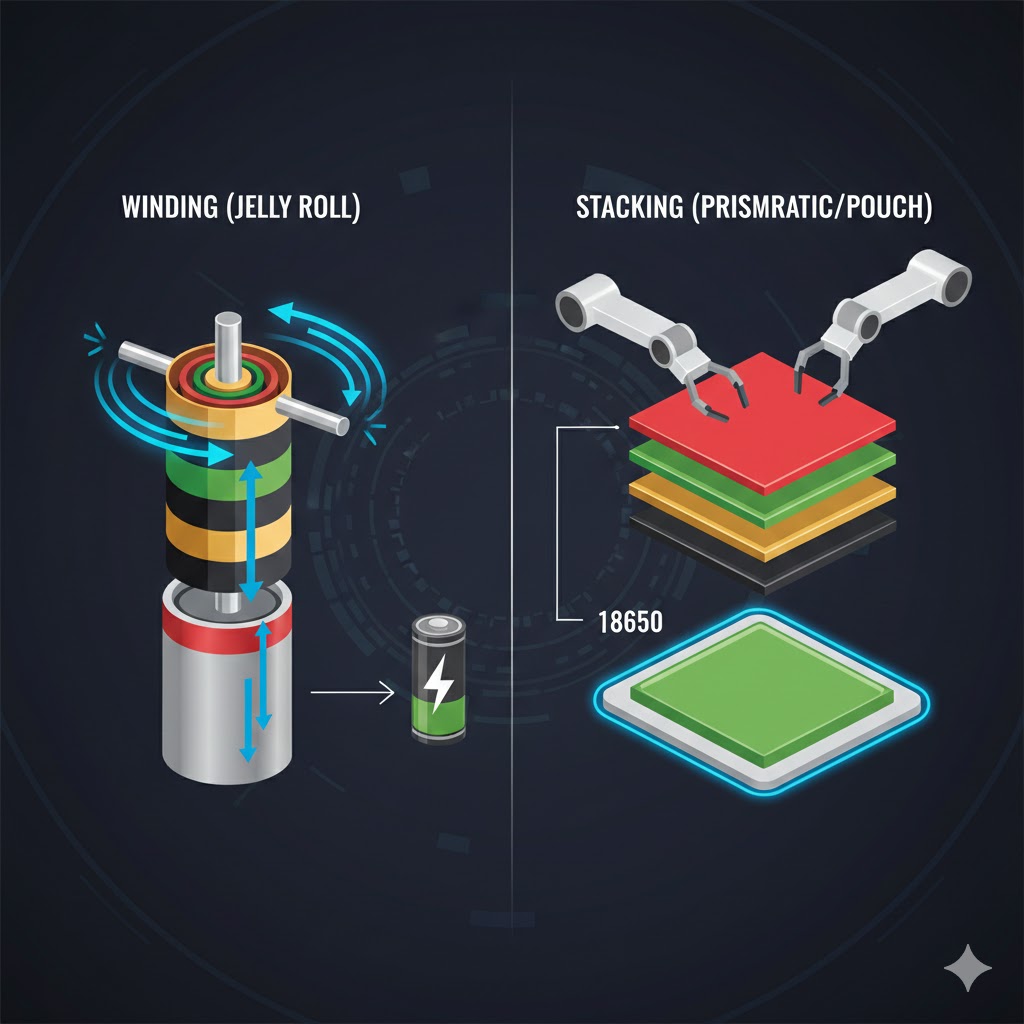

Winding or Stacking
Machines take one strip of anode, one strip of separator, and one strip of cathode.
If the factory makes cylindrical cells (like standard AA shapes), a machine winds the strips tightly together. It rolls them up like a jelly roll.
If the factory makes pouch cells or prismatic (square) cells, the machine cuts the strips into flat rectangles. It stacks them one on top of the other: anode, separator, cathode, separator. It repeats this many times.
Welding the Tabs
The cell needs a way to send electricity out. Machines weld small metal tabs to the anode and cathode strips. These tabs will connect to the outside of the battery casing.
Packaging
The “jelly roll” or the stack goes into its final container. This container might be a hard steel cylinder, a hard aluminum box, or a soft plastic pouch. The machine seals the container, but it leaves one tiny hole open.
Phase 3: Injecting the Electrolyte
The cell is mostly built, but it has no liquid inside. The factory moves the cells into a vacuum chamber.
Machines pump the electrolyte liquid into the cell through the tiny hole. The liquid contains the special lithium salts. The vacuum helps the liquid soak deep into the tightly packed electrodes. Every tiny pore must be wet.
After the liquid is inside, the machine seals the final hole. The cell is now completely closed. Air cannot get in, and liquid cannot get out.
Phase 4: Formation and Quality Testing
The cell is sealed, but it is not ready to use. It has no electricity in it yet. It must go through a process called “formation.”
The First Charge
Workers place thousands of new cells onto massive charging racks. They connect computers to the cells. They give the cells their very first electrical charge.
This first charge is critical. The electricity causes a chemical reaction inside the cell. It creates a protective layer on the anode. This layer is called the Solid Electrolyte Interphase (SEI). A good SEI layer means the battery will live a long time.
Aging and Testing
The factory does not sell the batteries right away. They let the cells sit on shelves for a few weeks. This is the aging process.
After aging, computers test every single cell. They check the voltage. They check how well the cell holds its state of charge. If a cell loses power while sitting on the shelf, it is defective. The factory throws defective cells away to ensure top safety.
Engineers also test the overall battery performance. They make sure the cell can deliver the right amount of power without getting too hot.
Phase 5: Building the Battery Pack
A single cell does not have enough power for big jobs. To run a solar home or a car, we need many cells. We must build a battery pack.
Grouping Cells into Modules
Workers take many individual cells and group them together. They connect the positive and negative ends using metal bars. This group of cells is called a module. Connecting them increases the total voltage and power.
The Battery Management System (BMS)
A battery pack needs a brain. This brain is a computer circuit board called the Battery Management System (BMS).
The BMS is vital for safety. It watches the temperature of every cell. It checks the state of charge of every cell. It makes sure no cell overcharges or drains too much. If the BMS senses danger, it shuts the battery down immediately.
Final Assembly
Workers place the modules and the BMS into a strong outer case. They add cooling systems if needed. Electric vehicles often have liquid cooling systems inside their battery packs. Finally, they seal the large case tightly.
The battery pack is now finished. It is ready to power a car, a forklift, or store energy from the sun.
Quality Control: Why Safety Matters Most
You might wonder why good batteries are expensive. The answer is quality control. Top-tier factories spend millions on testing equipment.
They use X-ray machines to look inside finished cells. They check to make sure the electrodes are straight. They check that the separator is perfect. Remember, bad alignment causes short circuiting.
They also do destructive testing. They take random batteries and crush them, pierce them with nails, or put them in ovens. They do this to ensure the battery will not explode during an accident. As an industry expert, I can tell you that choosing a factory with strict quality control is the most important decision a brand can make.
Frequently Asked Questions (FAQ)
Why do batteries lose capacity over time?
Every time you charge and discharge a battery, the chemical structure inside changes slightly. Over a few years, the active material wears down. It cannot hold as many lithium ions. This is why your phone battery dies faster after two years.
Are lithium batteries safe for home use?
Yes, especially if they use lithium iron phosphate (LFP) chemistry. LFP is highly stable. Also, a quality Battery Management System (BMS) provides an extra layer of protection against overheating.
Can lithium-ion batteries be recycled?
Yes. The recycling process is improving rapidly. Recycling plants can crush old batteries and extract valuable metals like lithium, cobalt, and copper. Using recycled materials for lithium ion batteries helps protect the environment.
Conclusion
Making a lithium-ion battery is an incredible journey. It starts with simple raw powders. It moves through precise coating, careful cell assembly, and strict testing.
Whether it is the high energy density needed for electric vehicles, or the safe reliability needed for renewable energy storage, the factory floor is where the magic happens. By understanding this process, we can better appreciate the amazing technology that powers our modern lives.
