51.2V 200Ah Lithium Battery
51.2V 200Ah Lithium Battery - Image 2
51.2V 200Ah Lithium Battery - Image 3
51.2V 200Ah Lithium Battery - Image 4
51.2V 200Ah Lithium Battery - Image 5
51.2V 200Ah Lithium Battery - Image 6

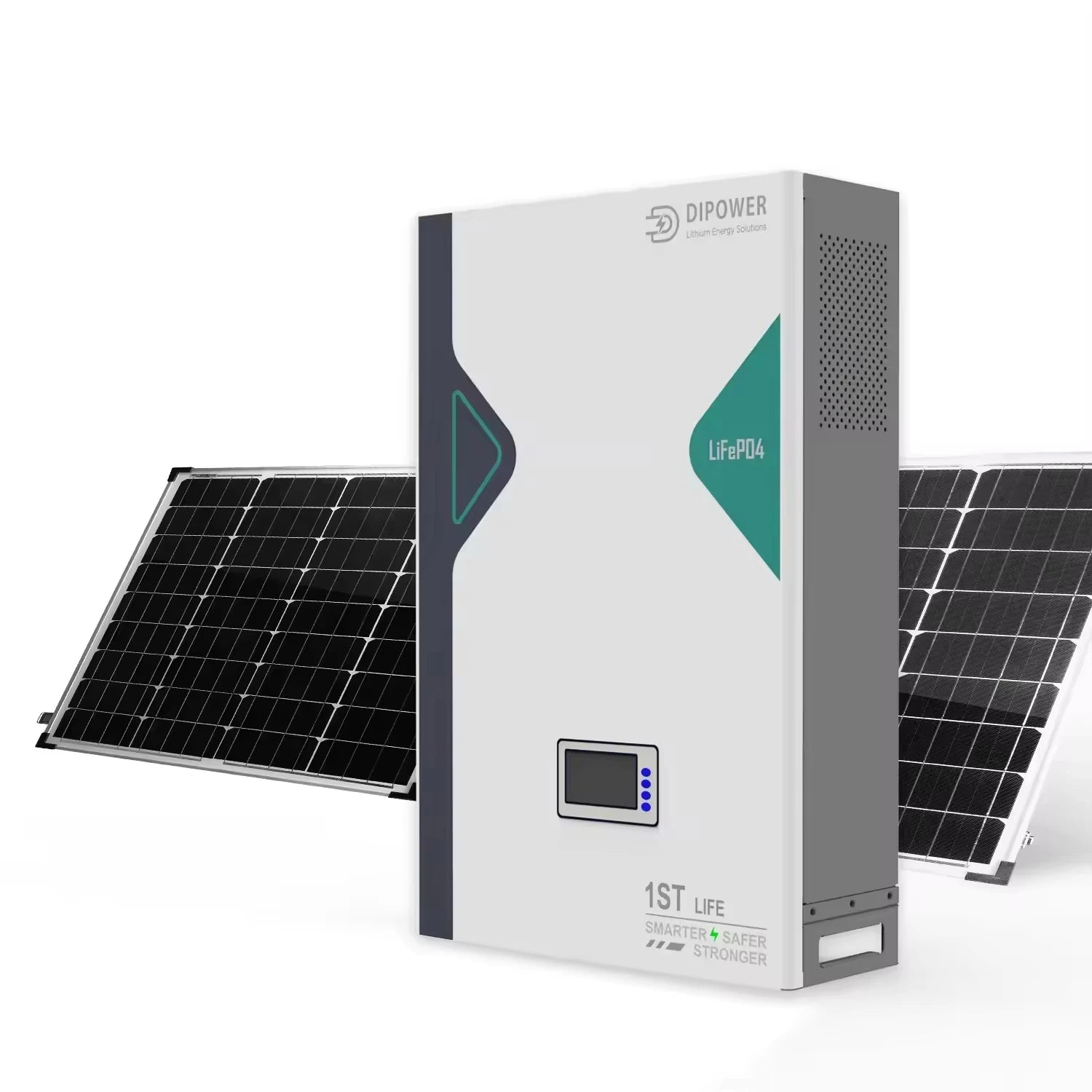

51.2V 200Ah Lithium Battery

$439.90

Inquiry
Facebook
Twitter
LinkedIn
Product Description

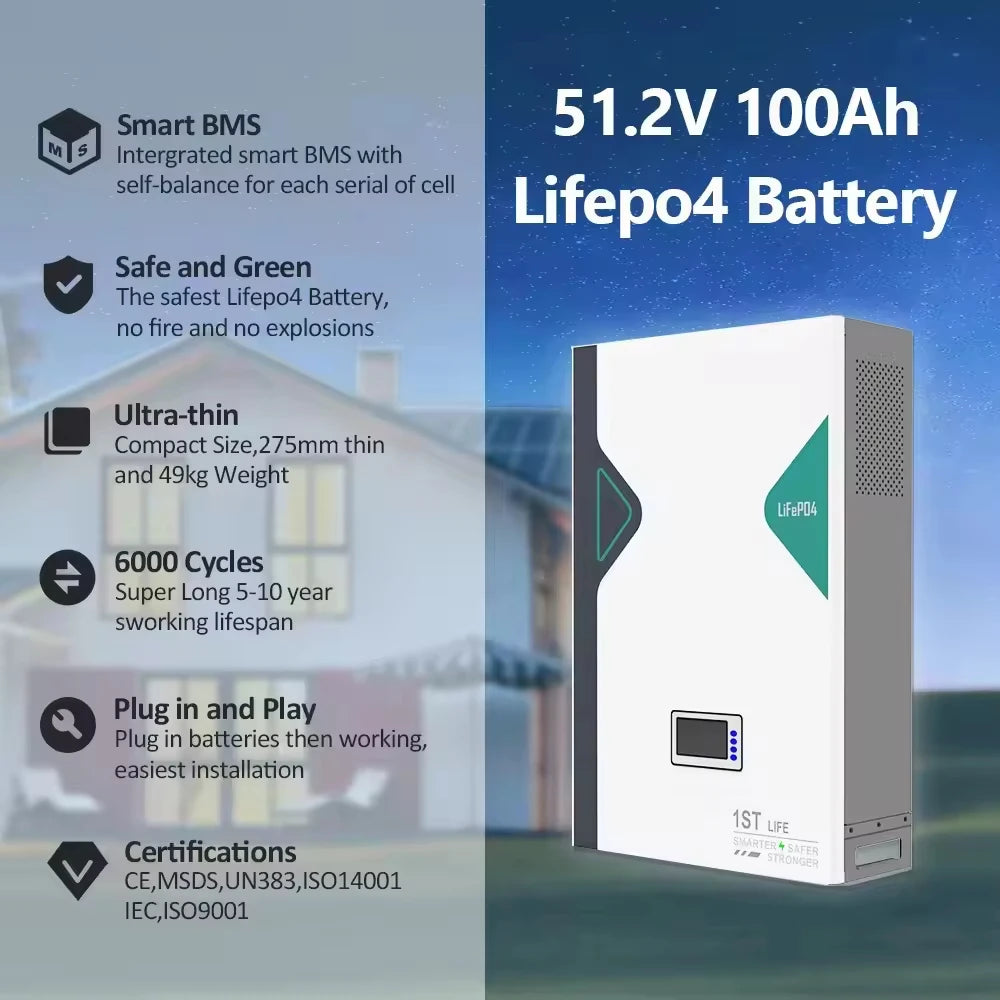

5kwh lifepo4 battery home lithium battery solar storage
Wall-mounted battery
5~12kWh/51.2V

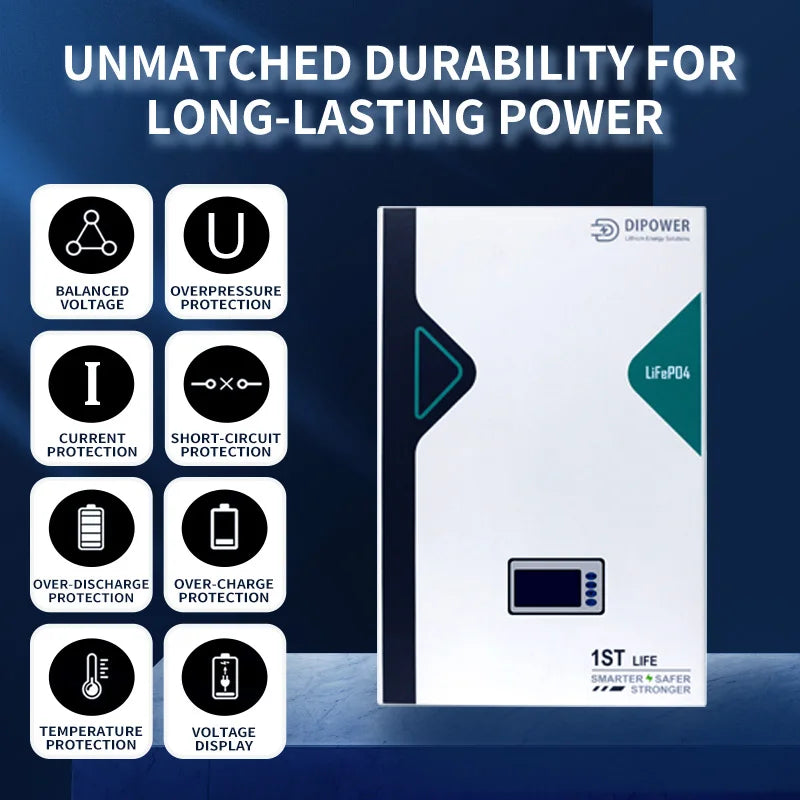

Battery is safe and reliable
High-quality lithium batteries, intelligent battery management
system, long lifespan, with a 5-year warranty.
Easy to install and maintain
The wall-mounted design saves space, is easy to install, and facilitates routine maintenance.
Intelligent control
Supports remote monitoring and control, allowing users to check the battery status in real time via smartphones or computers.
Product Paramenters
                                                                                            Battery specification

Model
51100
Rated energy capacity
100Ah
Cycle
>6000times
Voltage range
DC44.8V ~ 58.4V
Battery type
Lithium iron phosphate( LiFePO4 )

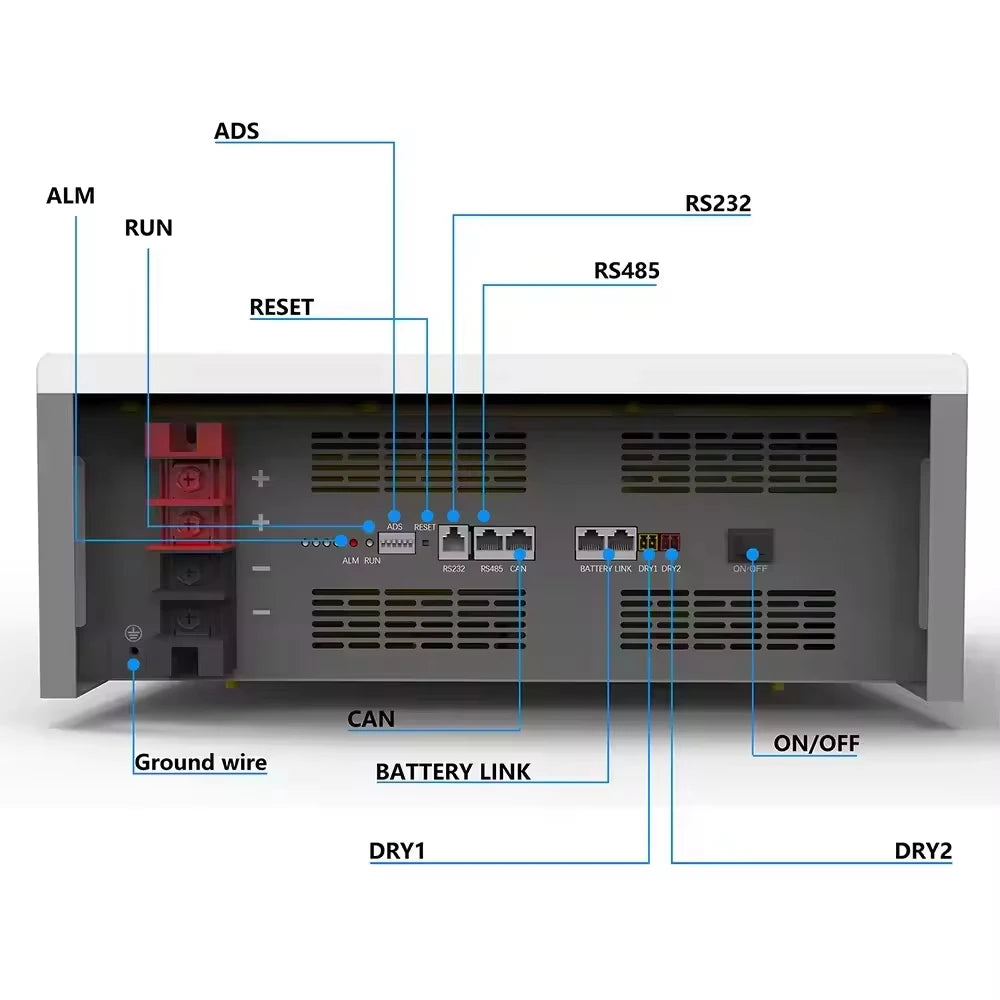

BMS communication
RS485, RS232, CAN, Ethernet
Electrical parameter

Rated engery
5120W
Minimum discharge voltage
43.2V
Max continuous charge voltage
100AH
Max continuous charge current
100AH
Max continuous discharging
100AH
Current Maximum charging voltage
57.6V
Installation mode
Wall mounted
Product Parameters

Dimension(L X D X H)
610x400x170mm
Package size(L X D X H)
704x494x270mm
Net weight
42kg
Gross weight
55kg
IP Grade
IP54
Operating temperature range
Charging: 0~45 ℃ Discharge: -30~55 ℃
Cooling mode
Natural cooling
Operating Humidity Range
0~95%( no condensation)
Max working altitude
4000m(>3000mNeed to derate)
display screen
Optional
DC charging port
Wall-through fence terminal
optional features

Cloud platform management
Support intelligent cloud platform/APP
Remote intelligent management
Support 4G communication
if there are changes in product size and parameters,the actual situation shall prevail.
Products Features

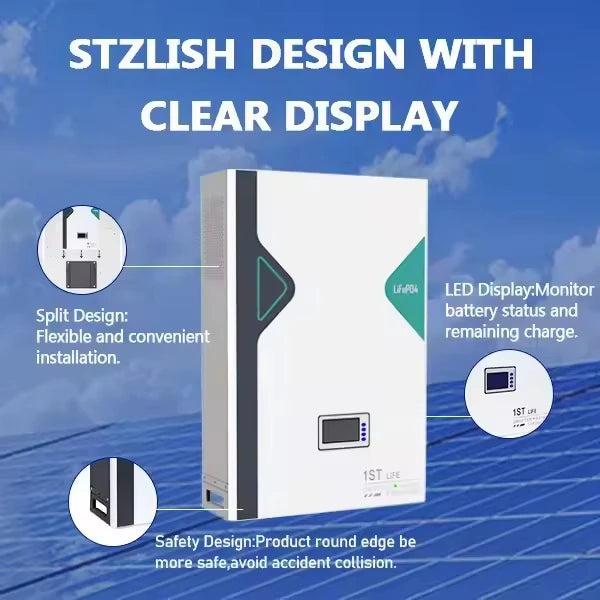

*Slipt design,flexible and convenient installation, not limited by floors

*Can be applied to variety of scenarios,the product has a variety of patents,
*super long service life,strong after-sales service

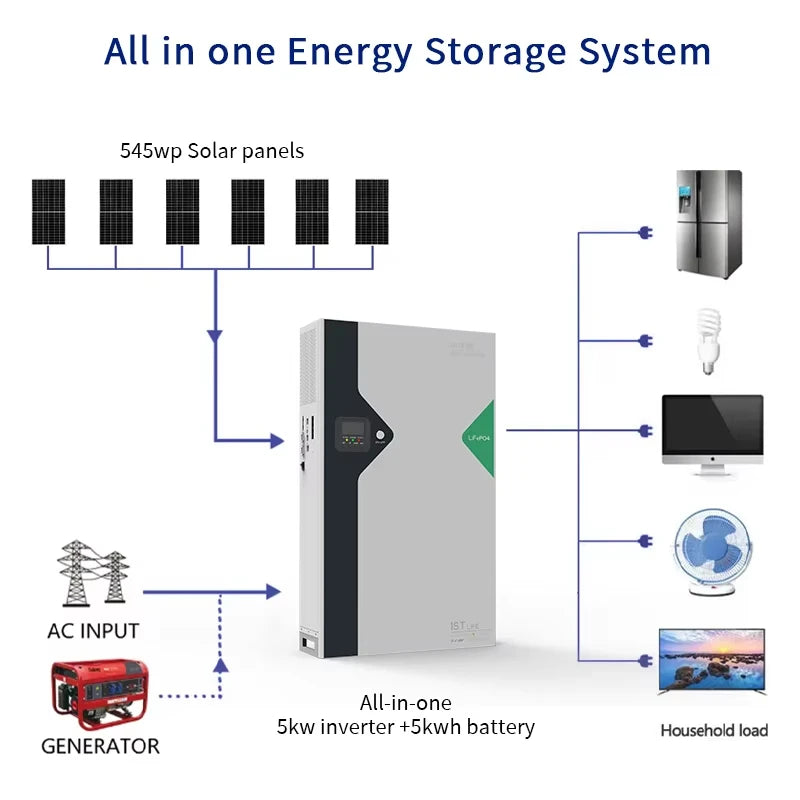

*Efficient off-grid system,clean and environmentally friendly energy storage method.
*Intelligent control,anti-leakage isolation”safety wall” safe and reliable.
Packing list
Global projects
Compatible with most brands three phase inverter,including Growatt Deye Goodwe Sofar Luxpower etc.
Our batteries are suitable for the vast majority of inverters in the market, and we have our own research and experimental
personnel, as well as long-term non-stop inverter matching experiments for customers.
Company Profile
Yauneidak Battery, dedicated to manufacturing LiFePO4 battery packs and provide premier solutions and customized services for new energy applications worldwide.

YND has provide many projects to customer in each countries, including starter battery (12v, 16v, 24v),
out-door auxiliary battery, home energy storage battery (48v, 51.2v) and industry battery.

Strength factory one-stop customization
Many years of experience in industry customization, quality assurance and adequate inventory
1. Years of experience,

2. Diversity of categories,
3. On-demand customization
4. 4. Focus on production,
5. Fast delivery, 6. Worry free after sale

If you want to know more about other products, freely contact us 24/7 online at any time!

FAQ
Q1: Are you a battery manufacturer?

A: We are an experienced factory for lithium battery in Guangdong, China and greatly support our customers do customization to satisfy their detailed battery requests&applications.

Q2. Can I order samples?
A: Yes, we welcome to order samples to test and check the quality.

Q3. Do you have a minimum order quantity limit?
A: Yes, we have a MOQ for mass production, which depends on different part numbers. 1~10pcs sample order.

The minimum orderquantity is 1pc which can be used for sample inspection.

Q4. How do you ship the goods and how long will it take to arrive?
A: It usually takes 5 to 7 days to arrive. Air and sea are also optional.

Q5. How to place an order?
A: Let us know your requirements or applications first.

Secondly, we quote according to your request or suggestion. We will arrange production after you confirm.

Q6. Can I print my logo on the product?
A: Yes. Please inform us formally before production, and first confirm the design based on our samples.

Q7: What kind of certificates could you have in battery?
A: UN38.8, CE, FCC, MSDS necessary certifications are available and your batteries will get fully support in safety performance and smooth transportation.
