Products Features

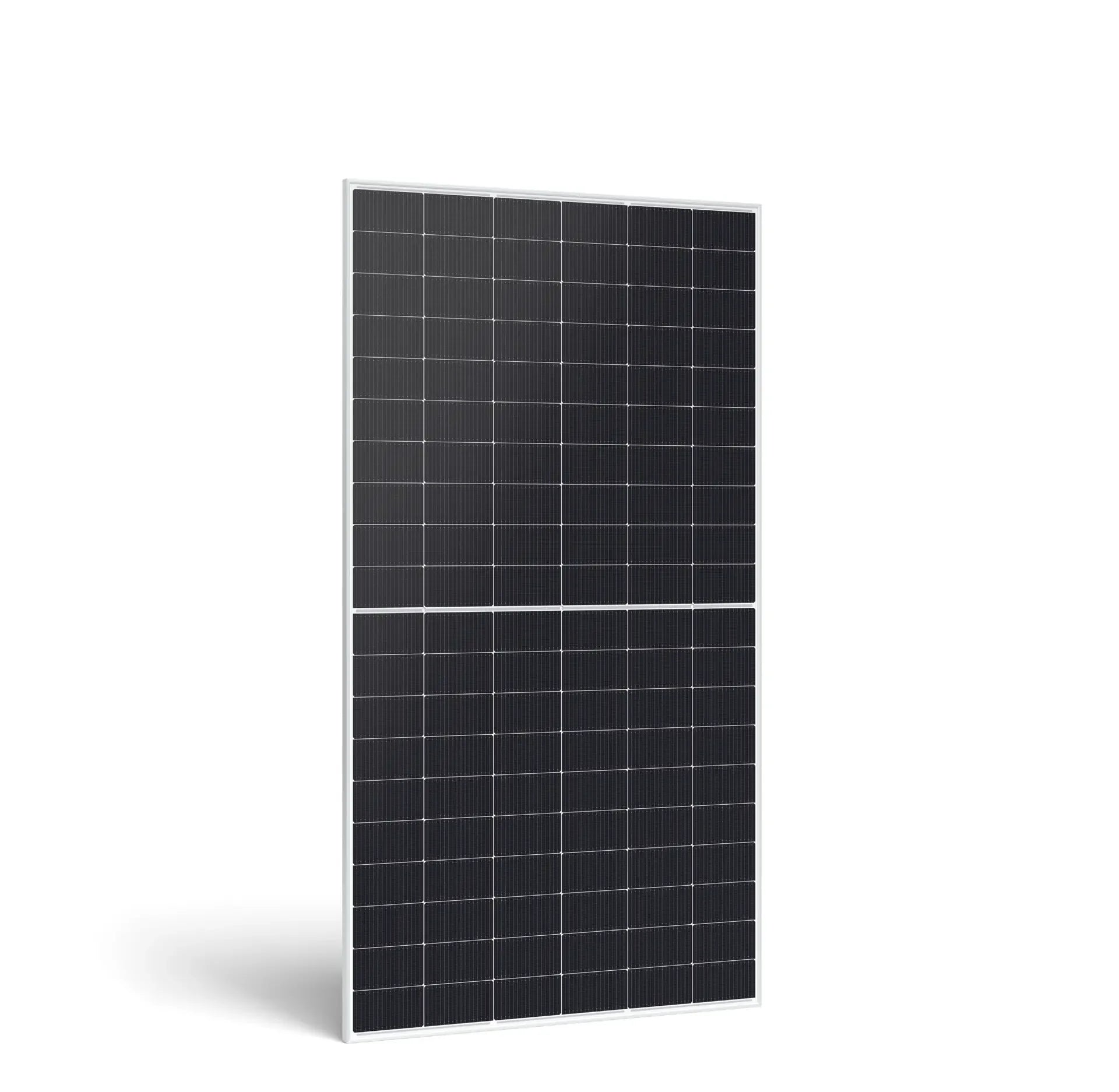

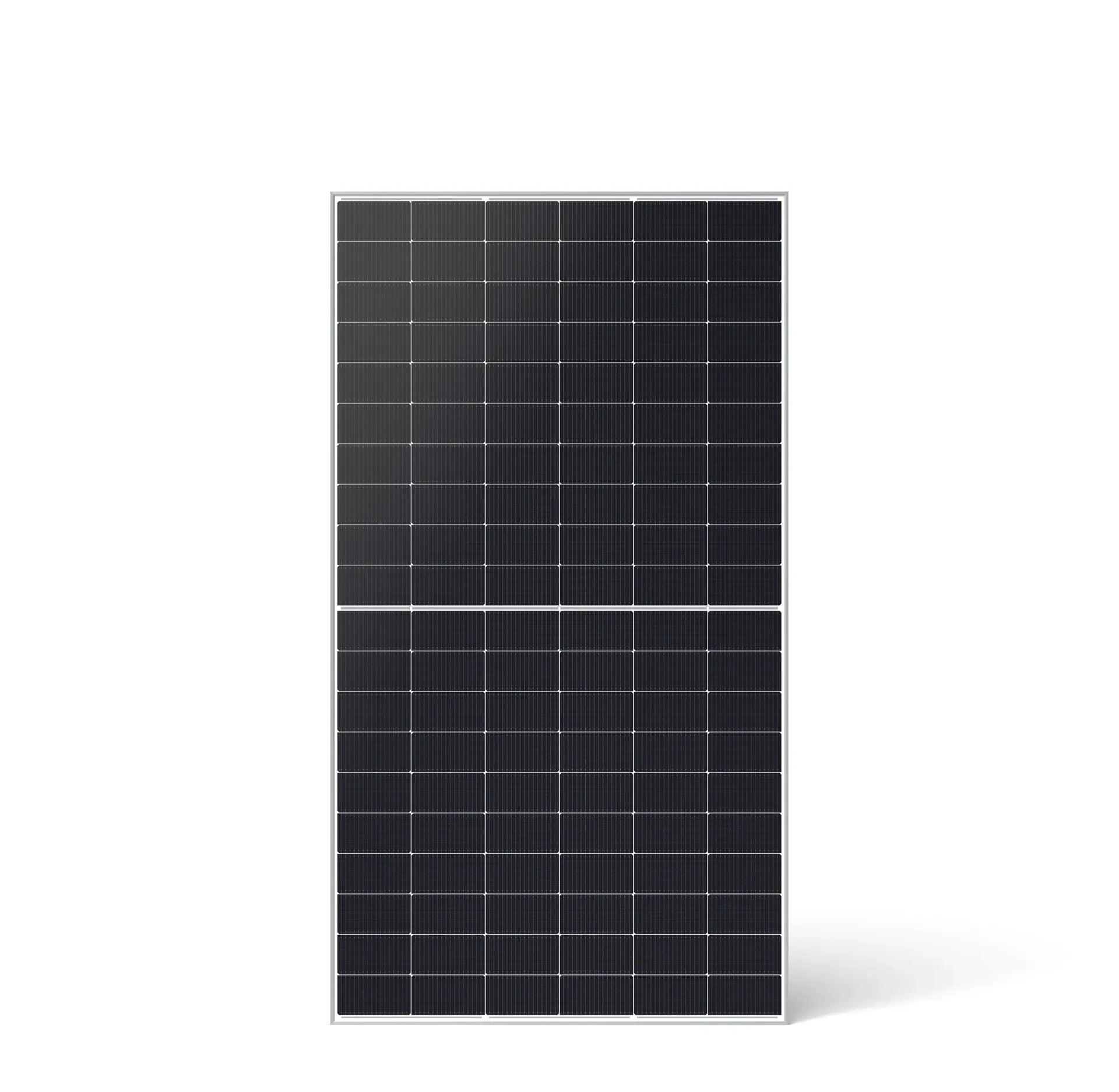

* Type: Bifacial Dual Glass Mono Module
* Maximum Power Output: 585W
* Maximum Module Efficiency: 22.65%
* Power Tolerance: 0~+5W
* Certifications: IEC61215, IEC61730, ISO9001:2015, ISO14001:2015, ISO45001:2018
* Maximum Power Output: 585W
* Maximum Module Efficiency: 22.65%
* Power Tolerance: 0~+5W
* Certifications: IEC61215, IEC61730, ISO9001:2015, ISO14001:2015, ISO45001:2018
10%-30% Additional Power Generation Bifacial design enables 10%-30% extra power generation vs. traditional monofacial modules Outstanding Low Light Performance Higher power output even in low-light environments (e.g., cloudy days) Zero LID (Light Induced Degradation) N-Type cells have no LID naturally, which helps maintain stable power generation Better Temperature Coefficient More stable power generation under working conditions (supported by passivated contact cell tech) PID Resistance Excellent anti-PID performance guaranteed via strict production & quality control Enhanced Mechanical Load Certified to withstand wind load (2400 Pascals) and snow load (5400 Pascals) Lower LCOE Higher reliability, higher power output, and lower BOS cost Wider Applicability Suitable for scenarios like BIPV, vertical installation, snow areas, high altitudes, windy/dusty regions
|
Category
|
Item
|
Specification
|
|
Mechanical Properties
|
Cell Size
|
182mm*91mm
|
|
|
Number of Cells
|
144[12×(12×6)]
|
|
|
Module Dimension
|
2278113430&2278113435mm
|
|
|
Weight
|
32.5kg
|
|
|
Front Glass
|
2.0mm, Anti-Reflection Coating
|
|
|
Rear Glass
|
2.0mm, Heat Strengthened Glass
|
|
|
Frame
|
Anodized Aluminium Alloy
|
|
|
Junction Box
|
IP68 (3 diodes)
|
|
|
Cable Length
|
TUV tx14.0mm², (+):300mm/(-):200mm or Customized length
|
|
Operating Properties
|
Operating Temperature
|
-40℃~+85℃
|
|
|
Maximum System Voltage
|
1500V DC (IEC)
|
|
|
Maximum Series Fuse Rating
|
30A
|
|
|
Power Tolerance
|
0~+5W
|
|
|
Bifaciality
|
80±5%
|
|
Temperature Coefficient
|
Temperature Coefficient of Pmax
|
-0.310%/℃
|
|
|
Temperature Coefficient of Voc
|
-0.26%/℃
|
|
|
Temperature Coefficient of Isc
|
0.046%/℃
|
|
|
Nominal Operating Cell Temperature (NOCT)
|
42±2℃
|
About Us
Guangzhou Unipower Electronics Co., Ltd.
High quality: We-Unipower, promise to provide you the best quality products ! We check the quality of the goods one by one before shipping out , Ensure the defective rate is 0% ! OEM servise:OEM service is available ! Custom design is welcome !
Mature production process
We are have strongtechnology production resources withmoder production plants, equipment, ensuring product quality while also producing efficiently.
Professional team
We have a professional pre-sales and after-sales team to ensure high-quality service; we have excellent designers with mature design experience to design more beautiful and practical products according to customer needs; we have professionally trained workers to control every step of production.
Strength factory one-stop customization
Many years of experience in industry customization, quality assurance and adequate inventory
Many years of experience in industry customization, quality assurance and adequate inventory
1. 16+ Years of experience,
2. Diversity of categories,
3. On-demand customization ,
4. Focus on production,
5. Fast delivery,
6. Worry free after sale.
3. On-demand customization ,
4. Focus on production,
5. Fast delivery,
6. Worry free after sale.
About Us
Yauneidak Battery, dedicated to manufacturing LiFePO4 battery packs and provide premier solutions and customized services for new energy applications worldwide.
YND has provide many projects to customer in each countries, including starter battery (12v, 16v, 24v),
out-door auxiliary battery, home energy storage battery (48v, 51.2v) and industry battery.
If you want to know more about other products, freely contact us 24/7 online at any time!
If you want to know more about other products, freely contact us 24/7 online at any time!
Click to Contact Us ！！
Our products have authoritative test reports that meet international standards.
Customer feedback
Packing&Shipping

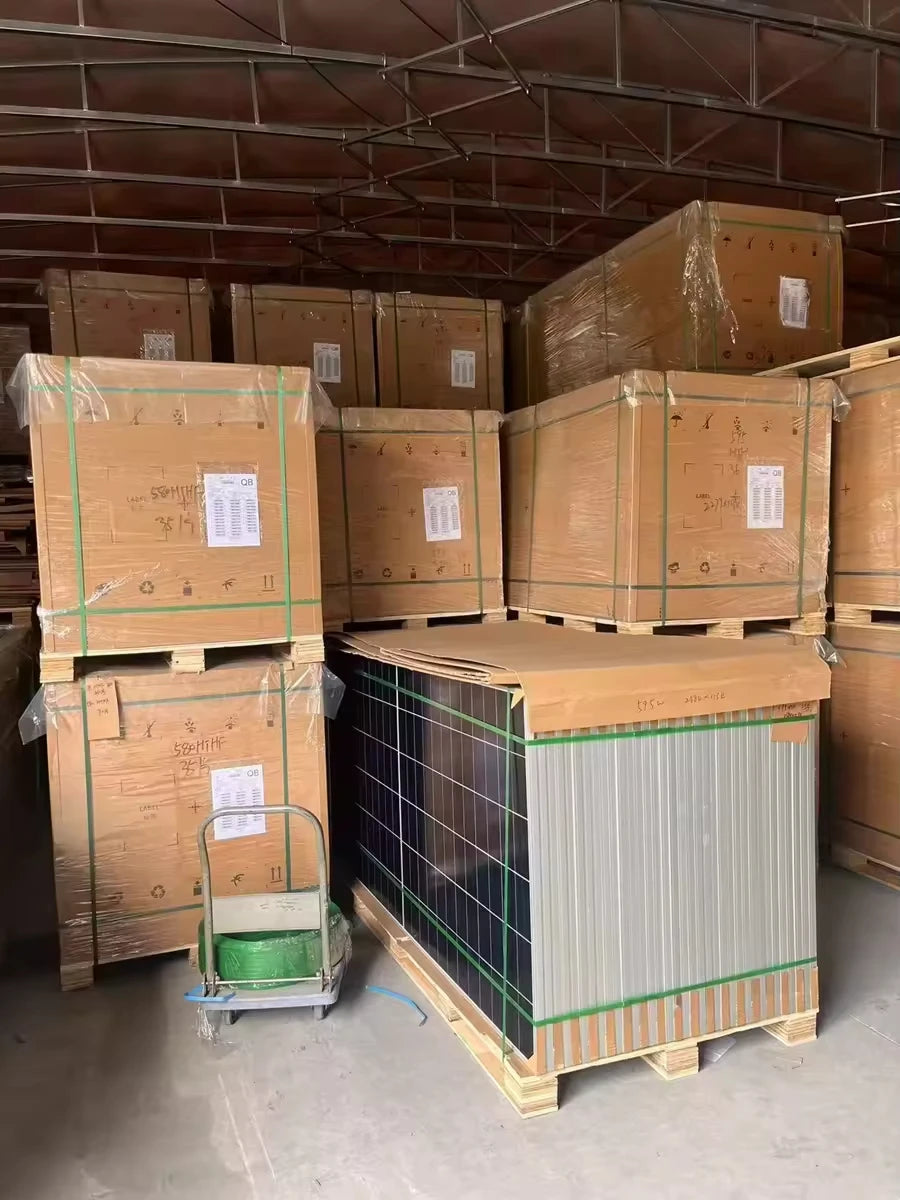

Warehouse corner
Our warehouse staff will inspect and pack the products before packaging to ensure the safety of transportation.

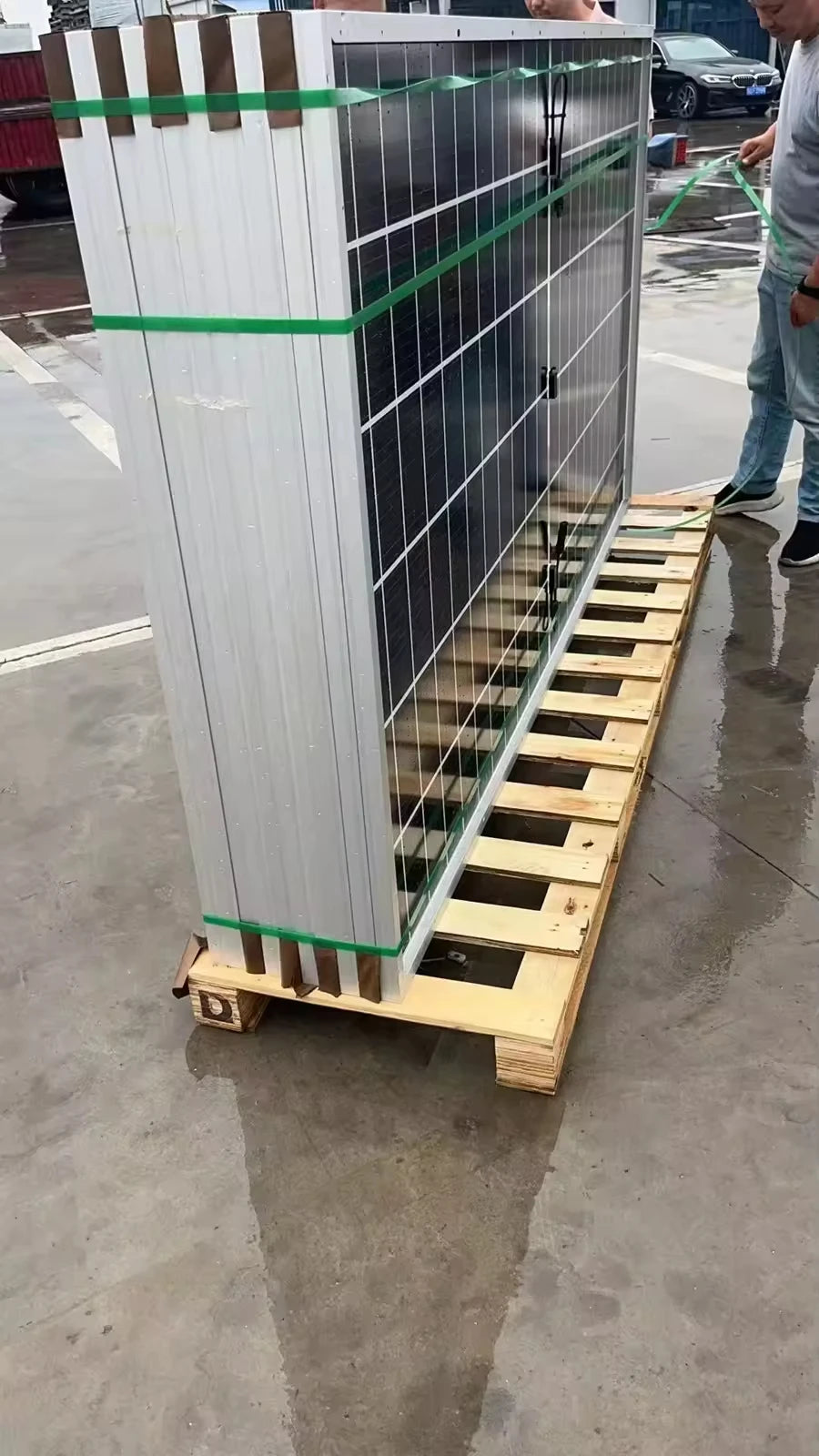

Packaging details
