When you look at solar systems, the shiny panels on the roof get all the attention. They are the engine that generates power. The battery bank is the gas tank that stores it. But there is a silent hero working in the background.
That hero is the solar charge controller.
If you connect solar panels directly to a battery, you are asking for trouble. You need a device to manage the energy flow. This guide will explain how a solar charge controller works and why it is essential for your safety and your wallet.
What is the main purpose of a solar charge controller?
At its core, the main purpose of a solar charge controller is to act as a gatekeeper. It manages the power moving from the panels to the batteries. Think of it like a faucet for a sink. If the flow is too strong, water splashes everywhere. If the sink gets full and the water keeps running, it overflows.
The charge controller regulates both the voltage and the current coming from your solar array. Its job is to ensure your batteries charge efficiently without getting damaged. It prevents the batteries from being eaten alive by too much raw power.
Most 12-volt solar panels actually put out 16 to 20 volts. If that unregulated power hits your battery bank directly, it will cook the batteries. The controller steps in to ensure the power to the battery matches what the battery can handle.
Protecting Your Investment

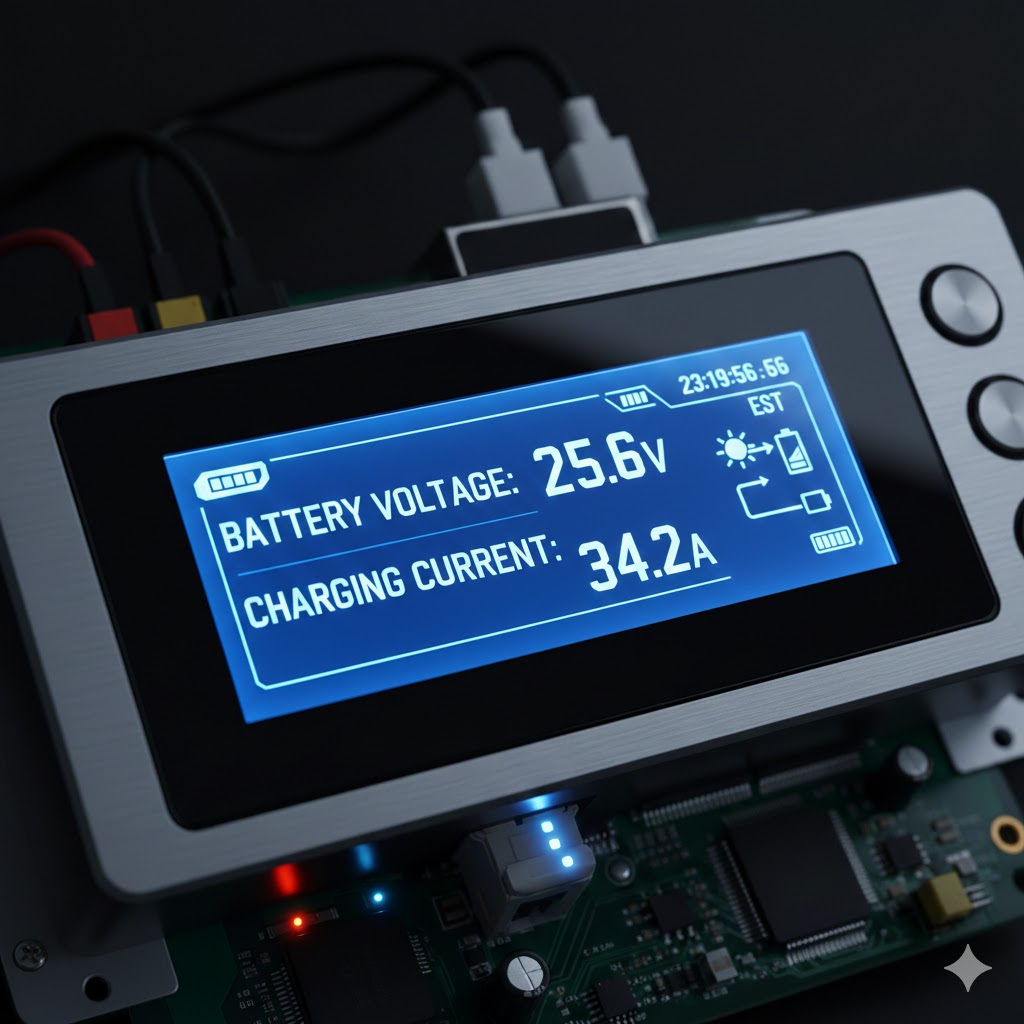

Batteries are expensive. Whether you have Lead-Acid, AGM, or Lithium batteries, they all have specific needs. A charge controller monitors battery voltages constantly. When the battery is low, the controller opens the gate to let energy in. When the battery is full, it slows down or stops the flow.
This process is vital to charge batteries correctly. Without this regulation, you reduce the lifespan of your battery bank significantly. In a way, the controller pays for itself by saving your batteries from an early death.

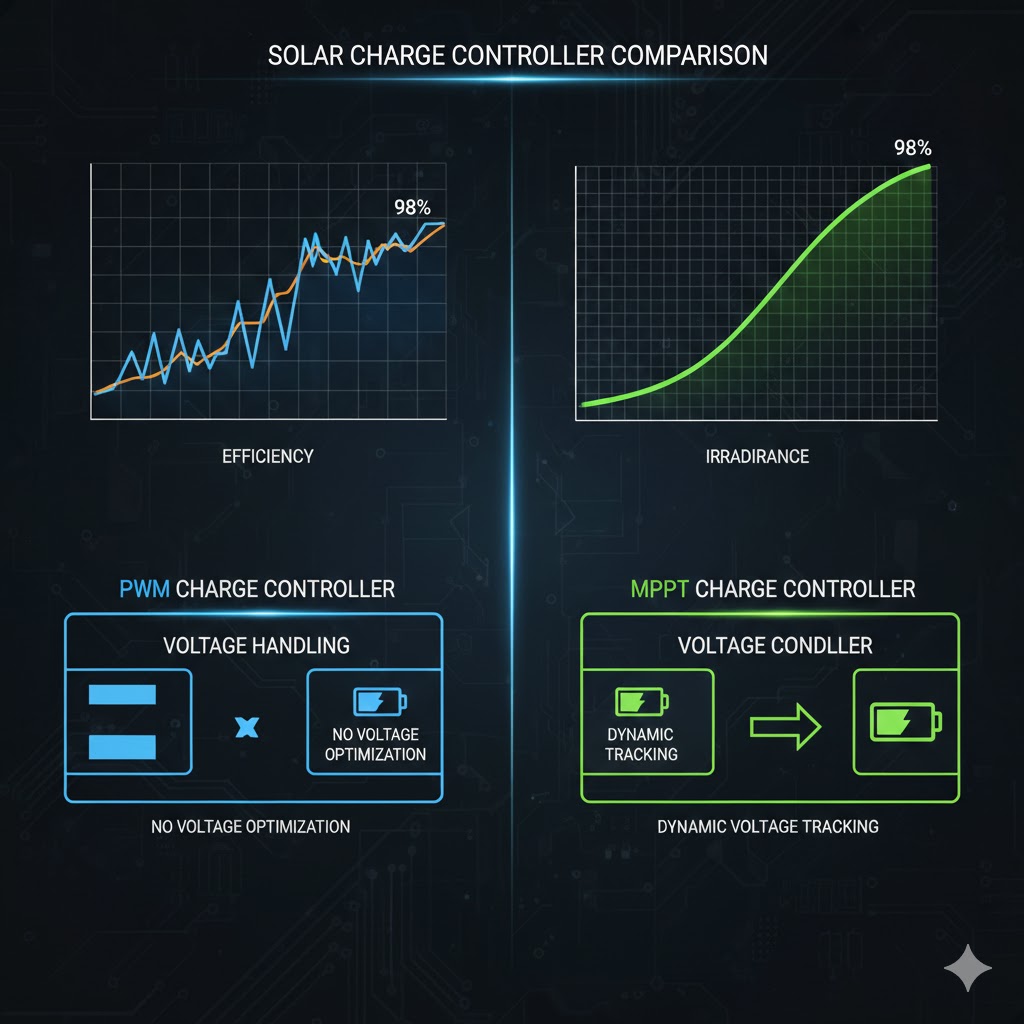

Understanding Controller Types: PWM vs. MPPT
Not all charge regulators are created equal. When shopping, you will see two main controller types: PWM and MPPT. Understanding the difference is key to building an efficient system.
PWM Charge Controllers
PWM stands for Pulse Width Modulation. These are the traditional, time-tested option. Imagine a switch that turns on and off very quickly. That is essentially how a PWM controller works.
PWM charge controllers connect the solar panel directly to the battery bank. They lower the voltage of the panel to match the battery. However, they are not very efficient. If your panel generates 18 volts but your battery only needs 13 volts, the PWM controller simply cuts off the excess voltage. That extra energy is lost.
These are great for small systems, like a single panel on a camper van. They are cheap and reliable, but you lose some of the power your panels generate.
MPPT Charge Controllers
MPPT stands for Maximum Power Point Tracking MPPT. These are the modern, high-tech choice. An MPPT controller is like a smart transmission in a car.
MPPT charge controllers are much more sophisticated. They can take the high voltage output from the solar panels and convert it down to the lower voltage needed by the battery. But here is the magic: they don’t just cut off the extra voltage. They convert that excess voltage into extra current (amps).
This means you get more power into your battery. MPPT controllers can be up to 30% more efficient than PWM models. They are essential if you have a large solar array or if you live in a colder climate where voltage fluctuations are common.
How the Charge Controller Regulates Charging Stages
To keep a battery healthy, you cannot just dump energy into it at full speed until it is full. The charge controller regulates the process in stages. Most modern controllers use a 3-stage charging cycle.
1. Bulk Charge
This is the heavy lifting stage. The controller sends as much current as possible to the batteries. The voltage rises as the battery charges. This stage usually brings the battery up to about 80% capacity.
2. Absorption Charge
Once the battery reaches a specific voltage set point, the controller switches modes. It holds the voltage steady but slowly reduces the current. This allows the battery to absorb the final 20% of energy without overheating. It ensures the battery gets fully topped off.
3. Float Charge
After the battery is fully charged, the controller reduces the voltage to a lower level. This is called a “trickle charge.” It maintains the battery at 100% and counteracts self-discharge. It ensures your battery bank is ready for action whenever you need it.
What happens if I don’t use a solar charge controller?
Skipping the charge controller is risky. Unless you have a very specific, tiny panel (like a 5-watt trickle charger), connecting panels to the batteries directly leads to two major problems.
Problem 1: Overcharging and Gas Generation
As mentioned earlier, solar panels output higher voltage than batteries need. If you force 18 volts into a 12-volt battery for too long, the electrolyte inside the battery will begin to boil.
This causes the battery to release gas. In sealed batteries, this causes permanent damage. In flooded lead-acid batteries, it boils the water away, exposing the plates. Once the plates are exposed to air, the battery is ruined. In extreme cases with Lithium batteries, overcharging can cause thermal runaway and fires.
Problem 2: Reverse Current Drain
This is a problem that happens at night. Solar panels generate electricity when the sun hits them. But electrically, they can also consume a tiny bit of power in the dark.
Without a controller, electricity can flow backward. It flows from the battery back up to the panels at night. This drains your battery while you sleep. A charge controller acts as a check valve, ensuring power only flows one way: into the battery.
Harnessing High Voltage and Voltage Drop
One of the biggest advantages of using MPPT charge controllers is how they handle voltage. In large solar systems, you often want to wire panels in series. This combines their voltage.
For example, you might have three panels producing 60 volts or more. This is considered high voltage in a DC system. High voltage is great because it travels better over long wires. It suffers less from voltage drop.
Voltage drop happens when electricity loses “pressure” as it travels through a wire. If your wires are long and the voltage is low, you lose power before it reaches the battery. By sending high voltage to the controller, you minimize this loss.
The MPPT controller then takes that high voltage and steps it down to match your 12V, 24V, or 48V battery voltages. It is the best of both worlds: efficient transmission and safe charging.
When to use a solar charge controller?
You might be wondering if every solar setup needs one. The answer depends on your specific application and connection type.
Off-Grid Systems

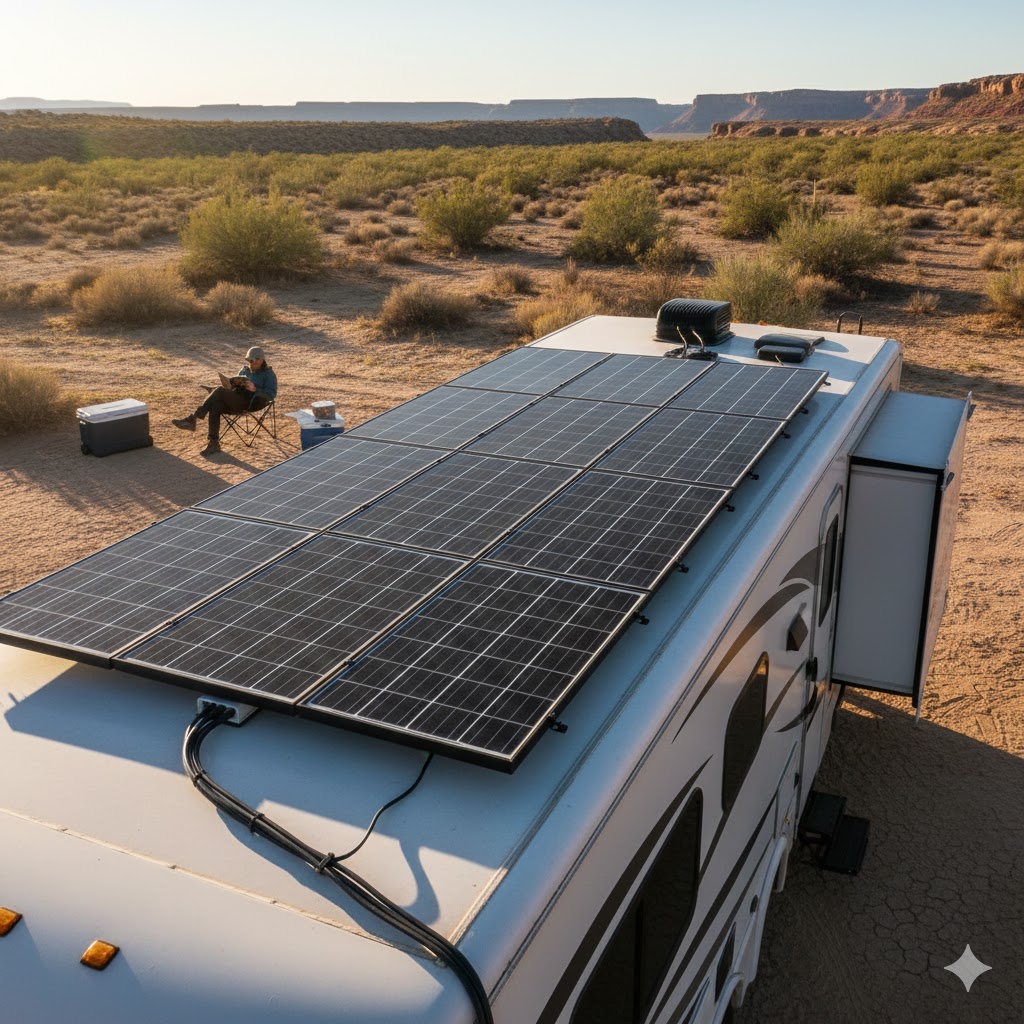

If you are living off-grid, in an RV, or on a boat, you absolutely need one. If you have a battery that needs to be charged by the sun, you need a controller. It handles the power to the battery and keeps the lights on.
Grid Tie Systems
In a strict grid tie home system (where you have no batteries and just sell power to the electric company), you usually do not buy a separate charge controller.
Why? Because the large grid-tie inverter handles the MPPT function itself. It converts the solar DC power directly to AC power for your home. However, if you have a “hybrid” system that includes backup batteries, you are back to needing a way to manage the battery charging. This is often built into hybrid inverters, but the principle is the same.
Small Maintenance Panels
The only time you might skip a controller is with a very small maintenance panel (under 5 watts). These deliver so little current that they are unlikely to overcharge a large car battery. However, even then, a small controller is better for peace of mind.
Selecting the Right Controller for Your Battery Type
When setting up your system, you must configure the controller for your specific battery type. A setting for a Lead-Acid battery will not work for a Lithium Iron Phosphate (LiFePO4) battery.
Lithium batteries can handle higher currents but are very strict about maximum voltage. Flooded lead-acid batteries sometimes need an “equalization” stage (a controlled overcharge to stir up the acid), which would instantly destroy a sealed AGM or Lithium battery.
Most modern mppt charge controllers and even decent pwm charge controllers allow you to select the battery chemistry. Always check the manual to ensure the controller supports your specific battery technology.
Summary: The Heart of the System
To summarize, the solar charge controller is the unsung hero of grid solar and off-grid setups alike. It protects your expensive battery bank from high voltage damage. It blocks reverse current at night. It ensures that the panels to the batteries connection is safe and efficient.
Whether you choose the affordable pulse width modulation (PWM) style or the highly efficient maximum power point tracking mppt style, using one is non-negotiable. It ensures your system runs smoothly for years to come.
